Featured Project Return to Projects List
316 GARDEN ST
Project Information
- Project Location:
- HOBOKEN, NJ
- Status:
- Completed - May 2024
- Structure Type:
- Misc Project
References
- Owner:
- BC2 GARDEN VENTURES LLC
- Architect:
- NASTASI ARCHITECTS
- General Contractor:
- CHILLEMI CONSTRUCTION GROUP
Scope Of Work
POWERWALL STUCCO SYSTEM INSTALLATION

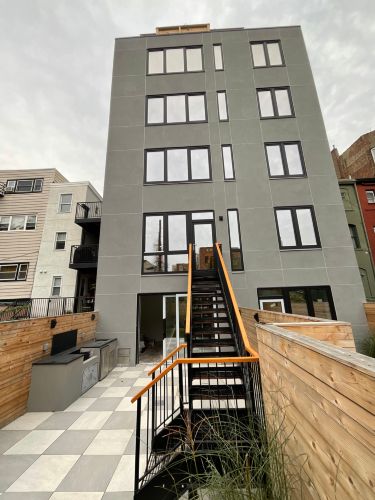

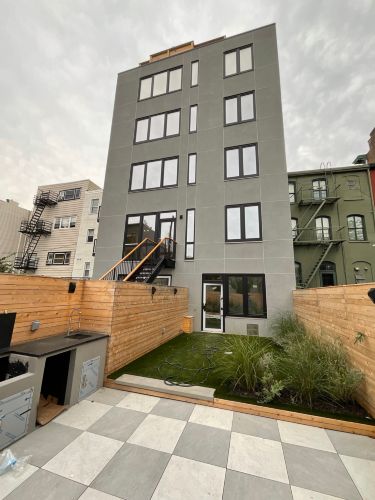

- Complete installation of ½” hard coat stucco system on two sides, rear of the building and on the exterior walls of the bulkhead of the building only.
- Complete installation of STO emerald coat waterproofing.
- Complete installation of 2 layers of felt paper.
- Complete installation of galvanized 2.5 wire lath.
- Complete installation of “J” channels and expansion joints required to break big walls into small panels easy to work with.
- Complete installation of Powerwall scratch coat.
- Complete installation of Powerwall hard coat.
- Complete application of Powerwall stucco finish will be the final coat.
- Complete installation of backer rod and caulking to all windows where the stucco will be installed only.
- Complete installation of aluminum flashing and counterflashing to meet adjacent neighbor’s roof as per drawings.
- Installation of the 2” Armor Wall VP insulated sheathing board (R-10) is not included in this proposal, it will be installed by others.
ROMAN BRICK INSTALLATION
- Complete installation of STO emerald coat waterproofing.
- Complete installation of mortar net on first courses of brick.
- Complete installation of weepholes and flashing at loose lintels.
- Complete installation of galvanized brick ties @24” both ways.
- Complete installation of 2” rigid insulation.
- Complete installation of Roman brick as per elevation (LABOR ONLY).
- Complete installation of galvanized loose lintel over windows and doors and relief angles @every floor.
- Complete installation of backer rod and caulking to all windows where the brick will be installed only.
- Wash brick after installation.

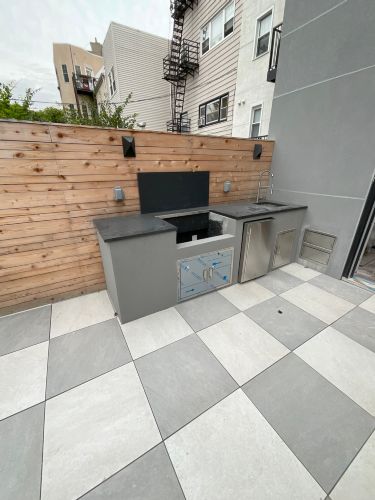

Project Images
